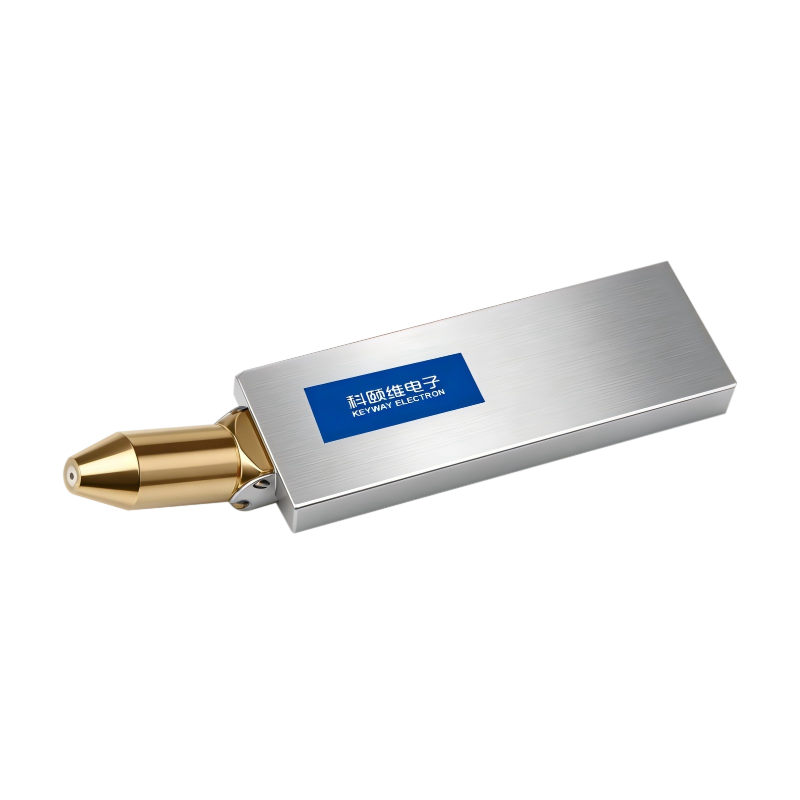

KYWHh50P4

One 50kV hand-held X-ray tube can be applied to hand-held, portable,and desktop machines, featuring a small size and low power consumption.

Hand-held X-ray tubes are widely used in ROHS testing, X-ray fluorescence analysis, X-ray thickness measurement, density analysis,X-ray imaging, online process control and other scientific research fields and industrial sectors that require X-ray light sources.


Scope of Application Technical Specification

Scope of Application:

X-ray fluorescence analysis
X-ray thickness measurement

density analysis
X-ray imaging


Technical Specification:

Output Voltage4-50kVAmbient Temperature-10 to +50℃
Output Current1-200μAStorage Temperature -25 to +75℃
Maximum Power4WCooling MethodAir Cooling
Beryllium Window Thickness0.2mmGrounding MethodAnode Grounding
Input Power12VDCCommunication InterfaceRS485
Target Material W (Tungsten)Weight360g
