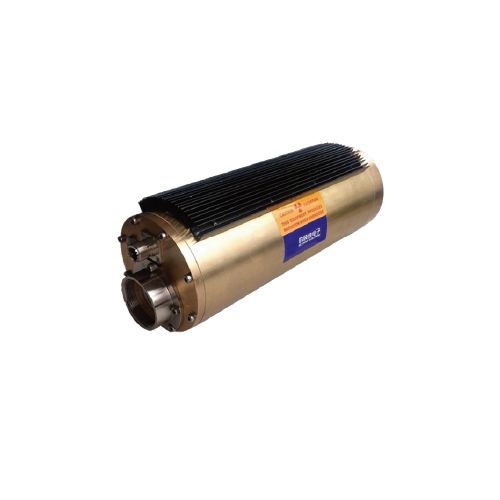

KYW800 High Power Brass Housing Tube Series

KYW800 Series X-Ray tube is a low-power, multi-use, side-window X-Ray tube. The tube is packaged in a brass casing, filled with special designed insulation oil for high-voltage insulation and heat dissipation. The tube is to be operated in a positive anode mode with the window grounded.


The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescent analysis, X-Ray thickness gauging, density analysis, X-Ray imaging, structure analysis, and process control.


Technical Specification

Technical Specification:

Max Anode Voltage80kVBe Window Thickness200μm(Glass window options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power80WCooling MethodForced air @ 150 CFM
Focal Spot Size1mmMax Package Temperature55℃
Nominal Filament Voltage2.5V@80kV,1mA Grounding MethodGrounded Window
Filament Current2.0VDimensionФ109x300
Cone  Angle20°Approximate Weight10.5kg
