KYW2000AX Glass Envelope Tube

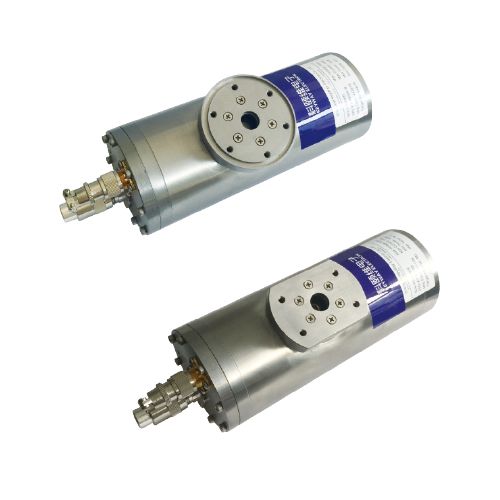

KYW2000AX Series X-Ray tube is a multi-use, low-power,side-window X-Ray tube.On basis of KYW200A Series,its packaging and tube core is further upgraded to match the narrow focal spot size. The tube is packaged in a stainless steel casing lined with lead.


The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescence analysis, and etc.It is specifically recommended that the tube be used for PCB inspection, XRF coating thickness measurement, drilling machine, and inspection machine for PCB industry.


Scope of Application Technical Specification

Scope of Application:

XRF Analysis

Thickness Measurement

Liquid Level Measurement

Technical Specification:

Max Anode Voltage50kVBe Window Thickness200μm,(100μm options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size100μmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50KV,1mA Grounding MethodGrounded Cathode
Filament Current1.5ADimensionФ72x178
Cone  Angle20°Approximate Weight2.2kg
