KYW2000B Water Cooling Tube Series

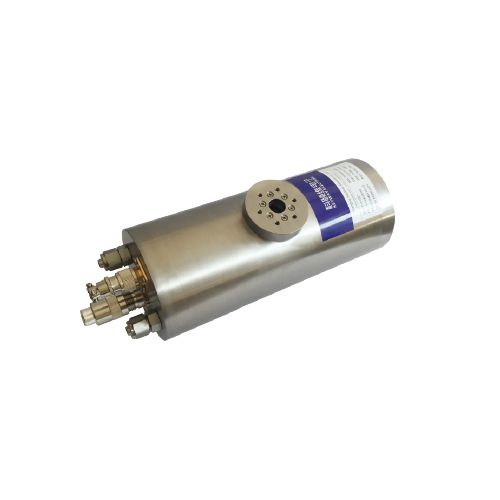

The KYW2000B Series X-Ray tube is a multi-use, low-power,side-window X-Ray tube. The tube is packaged in a stainless steel casing lined with lead. The package is filled with special designed insulation oil for high-volt-age insulation and heat dissipation. The tube is featured with water cooling, which improves the efficiency of heat dissipation and therefore increases the power in use for X-Ray.


The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescent analysis, X-Ray thickness gauging, density analysis, X-Ray imaging, structure analysis, and process control.


Scope of Application Technical Specification

Scope of Application:

Thickness Measurement

Technical Specification:

Max Anode Voltage50kVBe Window Thickness200μm (100μm options available)
Anode Current0-1.5mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50-75W

Cooling Method

Water temperature

Water Coling

<30℃,Water flow>0.5L/m

Focal Spot Size1mm(100μm available as option)Max Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ85x202
Cone  Angle20°Approximate Weight3.3kg
