X-Ray Imaging


X-Ray Imaging



Be widely used for the applications of X-ray imaging, including PCB inspection, measurement of cable diameter, ovality and concentricity, spotting machine, luggage inspection, non-destructive testing, industrial CT, food foreign object detection, archaeological identification... The minimum focal spot size can reach 35um.

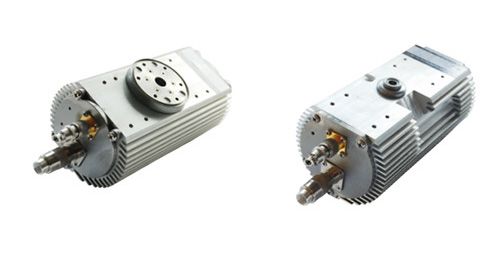

KYW2000AX

KYW2000AX

Max Anode Voltage50kVBe Window Thickness200μm (100μm options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size100μmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mAGrounding MethodGrounded Cathode
Filament Current1.7ADimensionФ72x178
Cone  Angle20°Approximate Weight2.2kg
Consult Now

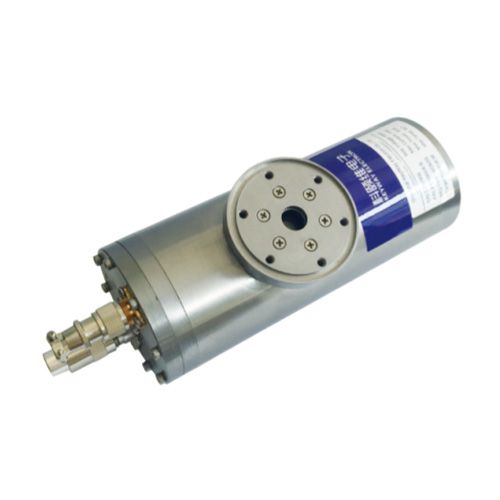

KYW1600X

KYW1600X

Max Anode Voltage50kVBe Window Thickness200μm (100μm options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size100μmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.5ADimensionФ70x185.5
Cone  Angle20°Approximate Weight2.9kg
Consult Now

KYW5000 Tube Replacement Series

KYW5000 Tube Replacement Series

Max Anode Voltage50kVBe Window Thickness100μm(200μm options available)
Anode Current0-1mAAnode MaterialW, Mo (Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size100μm ★Max Package Temperature55℃
Nominal Filament Voltage2.0V@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ70x163.5
Cone  Angle20°Approximate Weight2kg



Consult Now

KYW500A

KYW500A

Max Anode Voltage50kV          Be Window Thickness200μm (100μm options available
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size35μmMax Package Temperature55℃
Nominal Filament Voltage2.5@50kV,1mA  Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ72x178
Cone  Angle20°Approximate Weight2.2kg


Consult Now

KYW500B

KYW500B

Max Anode Voltage50kV          Be Window Thickness200μm (100μm options available
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size35μmMax Package Temperature55℃
Nominal Filament Voltage2.0V@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.7VDimensionФ100x182
Cone  Angle20°Approximate Weight3.5kg


Consult Now
