KYW2000AS Microfocus Tube Series

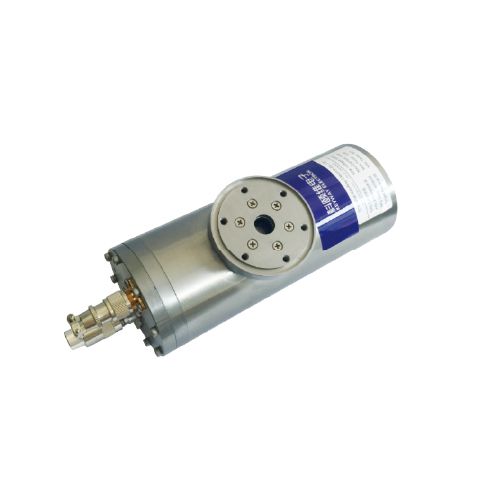

The KYW2000AS series X-RAY tube is a microfocus X-RAY tube,which is designed on basis of KYW2000AX Series.The tube is packaged in a stainless steel casing lined with lead. The package is filled with special designed insulation oil for high-voltage insulation and heat dissipation.The KYW500 Series tube is featured with smaller focal spot size,which can reach as small as 35μm.


It is specifically recommended that the tube be used for PCB inspection,XRF coating thickness measurement,drilling machine,and inspectiong machine for PCB industry.

Scope of Application Technical Specification

Scope of Application:

X-Ray Imaging

Technical Specification:

Max Anode Voltage50kVBe Windou Thickness 200μm (100μm,options available)
Anode Current0-1mAAnode Material
W,Mo,Rh,Ag(其它靶材可选)
Max Power50WCooling Method Forced air@150CFM
Focal Spot Size35μmMax Package Temperature55℃
Nominal Filament Voltage2.5V/@50kV,1mAGrounding Method Grounded Cathode
Filament Current1.7ADimensiongФ72x178
Cone  Angle20°Approximate Weight2.2kg
