KYW1200 Brass Housing Upgrade Series

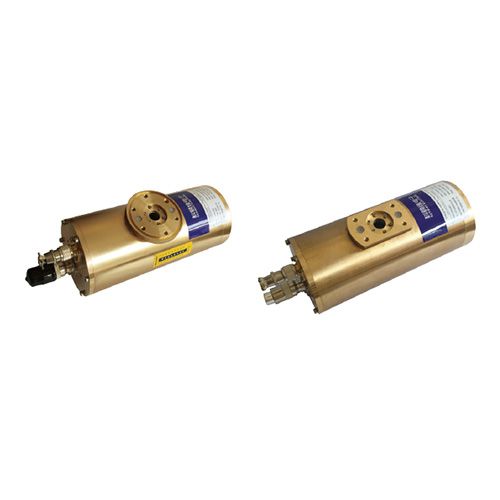

The KYW1200 Series X-Ray tube is a multi-use, low power X-Ray tube. The tube is packaged in a brass casing and filled with special designed insulation oil for high-voltage insulation and heat dissipation. The tube is featured with brass casing,which enables more effective heat dissipation and radiation shielding.

The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescent analysis, X-Ray thickness gauging, density analysis, X-Ray imaging, structure analysis, and process control.

Technical Specification

Technical Specification:

Max Anode Voltage50kVBe Window Thickness200μm (100μm options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size100μm Max Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ82x185
Cone  Angle20°Approximate Weight4.2kg
