KYW1600X dedicated for Coating Thickness Measurement

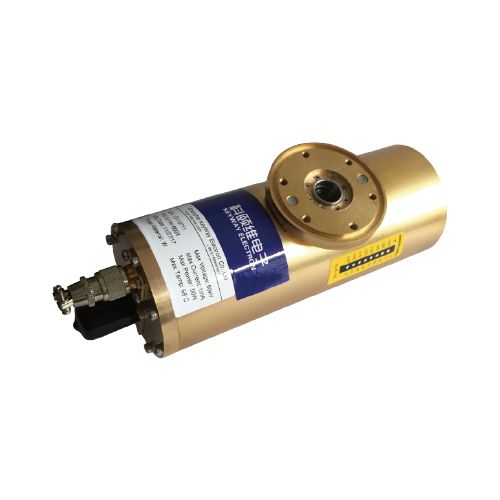

KYW1600X Series X-Ray tube is a multi-use, side-window X-Ray tube. The tube is packaged in a brass casing, which enables more effective heat dissipation and radiation shielding. The package is filled with special designed insulation oil for high-voltage insulation and heat dissipation.

The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescence analysis, X-Ray thickness gauging, density analysis, X-Ray imaging, real-time process control, and etc.It is specifically recommended that the tube be used for PCB inspection, film thickness gauge, drilling machine, and inspection machine for PCB industry.

Consult Now Next Product

Scope of Application Technical Specification

Scope of Application:

XRF Coating Measurement

X-Ray Imaging

Technical Specification:

Max Anode Voltage	4-50kV	Be Window Thickness	200μm(100μm options available)
Anode Current	0-1mA	Anode Material	W,Mo,Rh,Ag(Other materials available）
Max Power	50W	Cooling Method	Forced air @ 150 CFM
Focal Spot Size	100μm	Max Package Temperature	55℃
Nominal Filament Voltage	2.0V@50kV,1mA	Grounding Method	Grounded Cathode
Filament Current	1.5A	Dimension	Ф70x185.5
Cone Angle	16.5°	Approximate Weight	2.9kg
