Thickness Measurement


Thickness Measurement



Be widely used for X-ray thickness measurement, including steel plate thickness, paper & non-woven cloth thickness, metal foil thickness, etc. It is characterized by the stability of the X-ray intensity under continuous operation.

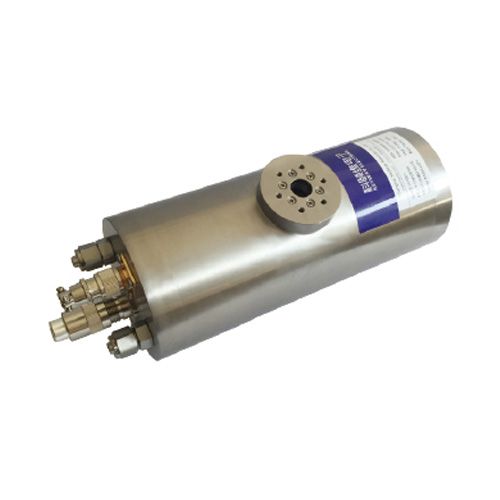

KYW1300

KYW1300

Max Anode Voltage20kVBe Window Thickness100μm
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power15WCooling MethodForced air @ 150 CFM
Focal Spot Size1mm (100μm available as option)Max Package Temperature55℃
Nominal Filament Voltage20kV/1mA If≈ 1.7AGrounding MethodGrounded Cathode
Filament Current≈2.5VDimensionФ51x136
Cone  Angle20°Approximate Weight0.9kg



Consult Now

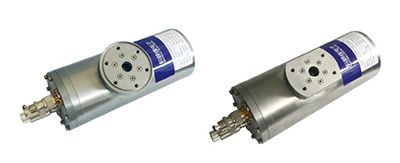

KYW2000B

KYW2000B

Max Anode Voltage50kVBe Window Thickness200μm (100μm options available)
Anode Current0-1.5mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50-75W

Cooling Method

Water temperature

Water Coling

<30℃,Water flow>0.5L/m

Focal Spot Size1mm(100μm available as option)Max Package Temperature55℃
Nominal Filament Voltage2.5@50kV,1mA Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ85x202
Cone  Angle20°Approximate Weight3.3kg



Consult Now

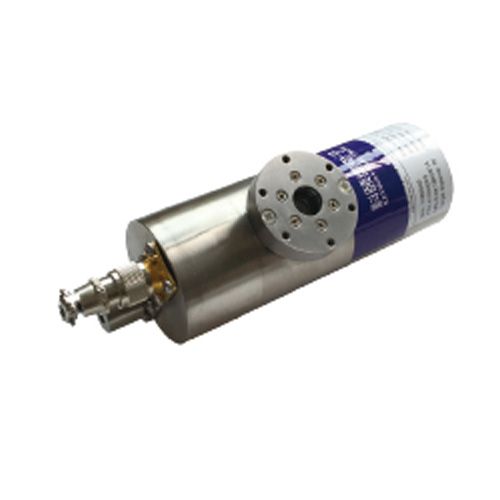

KYW2000A

KYW2000A

Max Anode Voltage50kVBe Window Thickness100μm,200μm,500μm,(options available)
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size1mmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mAGrounding MethodGrounded Cathode
Filament Current1.7ADimensionФ72x178
Cone  Angle20°Approximate Weight2.2kg


Consult Now
