KYW1300 Film Thickness Measurement Series

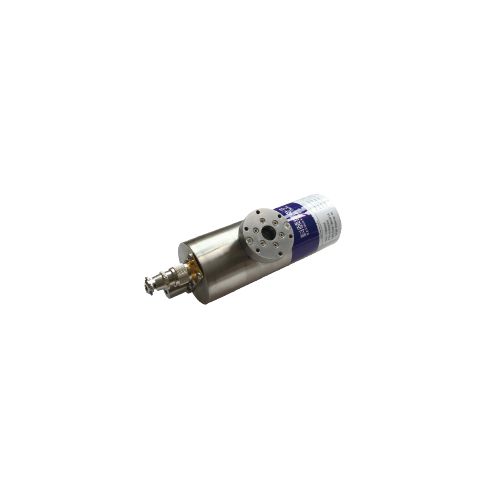

KYW1300 is a low-power,multi-use X-Ray tube. The tube is packaged in a stainless steelcasing lined with lead, filled with specila designed insulation oil for high-voltage insulation and heat dissipation. In order to extend  the application to the low power segment,the tube applies the imported 100μm Be sheet. The product is featured with compact volume and light weight.It has obvious advantage over similar product with silicone rubber packaging,in terms of heat dissipation and radiation shielding.



It is specifically fit for thickness gauge for non-woven fabric,paper,plastics film,aluminum foil,and copper foil.It is also applier for X-Ray fluorescence analysis of light element and thickness gauge of material made of light element.

Scope of Application Technical Specification

Scope of Application:

Thickness Measurement

Technical Specification:

Max Anode Voltage20kVBe Window Thickness100μm
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power15WCooling MethodForced air @ 150 CFM
Focal Spot Size1mm (100μm available as option)Max Package Temperature55℃
Nominal Filament Voltage2.5V@20kV,1mA  Grounding MethodGrounded Cathode
Filament Current1.7ADimensionФ51x136
Cone  Angle20°Approximate Weight0.9kg
