KYW2600 dedicated for Measurement of Concentricity

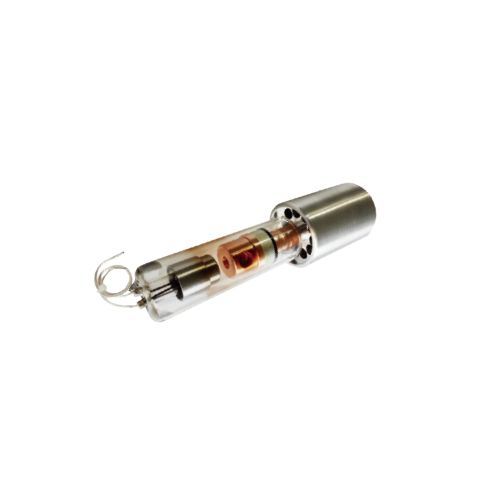

KYW2600 is a multi-purposed, and low-power X-Ray tube. It can be applicated as X-Ray source in replacement for the OEM tube for repair service for Sikora eccentricity and ovality measurement systems. With the matching installation dimension and technical specification for X-Ray source, KYW2600 is compatible with particularly  XRay 8000.This tube is also featured with its small focal spot size, which results in the sharp image.

Suitable for application in continuous online measurement of cables, and compatible with Sikora eccentricity and ovality measurement systems.


Technical Specification

Technical Specification:

Max Anode Voltage60kVCone  Angle20°
Anode Current2mABe Window Thicknessglass
Max Power100WAnode MaterialW
Focal Spot Size110μmDimensionФ40x225
Nominal Filament Voltage 4.0V @ 60 kV, 2mAApproximate Weight0.9kg
Filament Current3.2V
