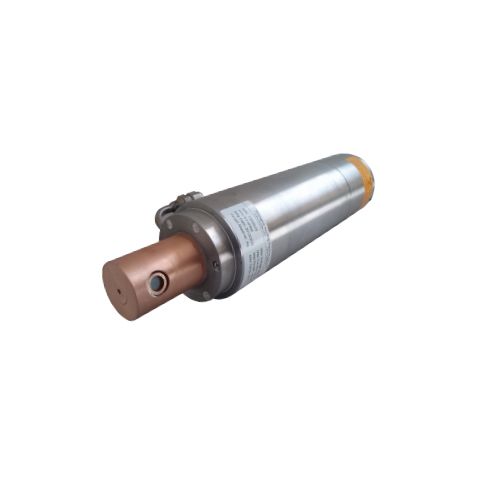

KYW700 Water Cooling Tube Series

KYW700 Series X-Ray tube is a high-intensity, low-power X-Ray tube. To improve the cooling effect and raise the maximum power in operation, water-cooling is applied to the tube with the anode grounded. The long and thin shape of the anode and the installation of Be Window to anode shorten the distance between target and subjects, thus improving the intensity of X-Ray.


This series is particularly in use for X-ray photoelectron spectroscopy, spectroscopy, X-Ray thickness gauge.


Technical Specification

Technical Specification:

Max Anode Voltage10-50kVBe Window Thickness500μm (200μm options available)
Anode Current0-5mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power250W

Cooling Method

Water temperatur

Water Coling

<30℃,Water flow>0.5L/m

Focal Spot Size2mmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,5mA Grounding MethodGrounded Anode
Filament Current2.5ADimensionФ72x323
Cone  Angle20°Approximate Weight3.5kg
